Terrace enclosure
BERGEN

Terrace enclosure
BERGEN

We are excited to present a fully functional mobile terrace that not only covers your pool but, with its high rigidity and load-bearing capacity, also opens up additional opportunities for activities and relaxation, enabling you to make the most of your garden all year round.

SWIM BY DAY, DANCE BY NIGHT!

• 2-in-1 – pool cover and a terrace you can walk on



• for pools up to 3 x 6 meters


• high load capacity (250 kg/m2) and rigidity thanks to ALBIXON's specially developed aluminium profiles covered by an industrial protection


• minimalistlockable blocking device protected by a utility model


• by connecting the modules, the enclosure turns into one multi-purpose compact surface



• the individual floor planks transform the floor into a uniform surface without visible gaps – valuables will not fall through the gaps, dirt will not fall into the pool

•  high quality WPC boards made from bamboo (60%), HDPE (30%) and additives (10%) from the renowned Spanish brand EXTERPARK


• fast and easy board installation without the need of screws, patented invisible board attachment, easy access for repairs


• the durability of the boards has been proved over the years by installations on terraces and poolsides, even in extreme stress and climatic conditions

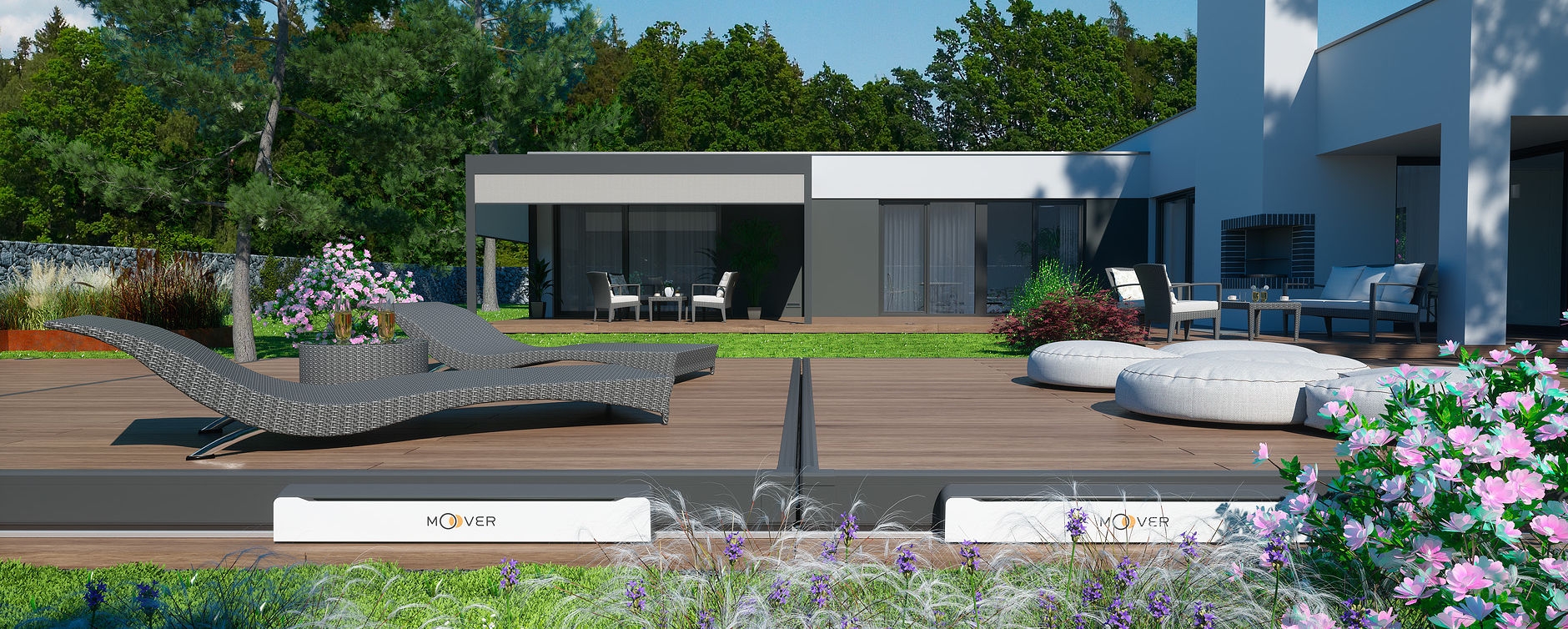

• option of moving manually or remotely using a MOOVER electric drive


• unique fit with the surrounding area owing to its natural appearance


• wpc boards and components are available to purchase individually to install on existing or new terraces to maintain the desing throughout the surrounding areas and around the pool

PANEL COLOUR OPTIONS








Teka

Ipe

Sand

Crema

Greige

Plata

High standard already in the basic model

  1. high load capacity and rigidity
  2. fulfils the requirements for snow zone 5
  3. minimalist design – single-track design
  4. height variability
  5. possibility of using custom coverings with different thicknesses
  6. lockable stoppers

BERGEN - TECHNICAL PARAMETERS




Maximum enclosed area 11‘3" × 21‘1"
Number of modules 2
External width  12´0"
External length  21´5"
Standard height 6 1/2‘‘
Standard height above ground * 3/8‘‘
Max. height above ground *  1 3/4‘‘
Module panels  EXTERPARK WPC boards
Standard board colour Teka
Optional board colour Ipe, Sand, Crema, Nieve, Plata
Thickness of optional boards 13/16‘‘–1 3/16‘‘
Supporting profiles  ALBIXON BERGEN
Rail Single-sided rail, walkable surface
Module blocking device Lockable
Profile colour Anthracit DB 703
Handle Included (use optional)
Load capacity per m2 50 lb/sq. ft
Accessories (optional) 1 15/16‘‘ polystyrene insulation, Kit to increase height

* indicates height of unevenness (e.g. decorative trim) that the enclosure can easily cover
